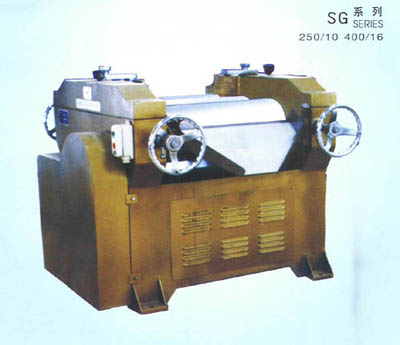

 Three Roller Mills


Features:
(1) Roller surface is made of double-metal cold and
      hard alloy and is of high rigidity, anti-shock,
      and great endurance.
(2) Transmission system: multi-line chain wheel,
      soft starting, allows high transmission
      effect, stable running and noiselessness.
(3) Parallel hand wheel screw adjustment of roller
      space allows simple, accurate and convenient
      operation.


 TECHNICAL PARAMETERS:
Type Roller
(mm)
配套動力
(KW/HP)
Speed Ratio 參考產量
(KG)
Weight
(KG)
Overall Dimensions(mm)
L         W          H
SG-250/10 ∮250×600 7.5/10 1:3:9 20-50 2000

1340×1350×1060

SG-400/16 ∮400×800 15/20 1:3:9 50-80 3800 2100×2050×1600
 NOTES:
  • The standard configuration is manual, water-cooling and horizontal setting. If you need any special function such as heating system, you can place an order marking your requirements on it.
  • The roller is made by double-metal cold and hard alloy, and is not suitable for the grinding of corrosive materials.
  • Parameters above listed are those for standard delivery. Please notify us the details and date of delivery if you have any special requirements.
  • According to our policy of constant improvement and innovation, we reserve the right for making modification and interpretation to the data above listed.
