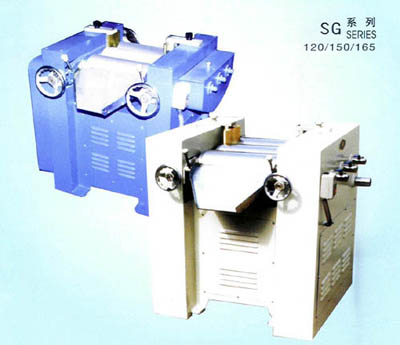

 Three Roller Mills


Features:
(1) Roller surface is made of nickel-based alloy
      and is of high rigidity, anti-shock, and
      great endurance.
(2) Transmission system: multi-line chain wheel,
      soft starting, allows high transmission
      effect, stable running and noiselessness.
(3) Manual screw-type adjustment of roller space
      allows simple, accurate and operation.


 TECHNICAL PARAMETERS:
Type Roller
(mm)
配套動力
(KW/HP)
Speed Ratio 參考產量
(KG/HR)
Weight
(KG)
Overall Dimensions(mm)
L         W          H
SG-120 ∮122×400 1.5 1:3:9 10-20 400 800×800×880
SG-150 ∮150×320 2.2 1:3:9 20-30 450 840×870×880
SG-165 ∮165×380 1.5 1:3:9 30-40 600 920×850×950
 NOTES:
  • The standard configuration is manual, water-cooling and horizontal setting. If you need any special function such as heating system, you can place an order marking your requirements on it.
  • The roller surface is made of nickel-based alloy possible to be used for milking of corrosive materials.
  • Parameters above listed are those for standard delivery. Please notify us the details and date of delivery if you have any special requirements.
  • According to our policy of constant improvement and innovation, we reserve the right for making modification and interpretation to the data above listed.
